e3 Markerboards and e3 Chalkboards

1000 Series

Visual display boards

Markerboards/Chalkboards substrate construction consist of e3 porcelain on 1/2" particleboard with optional .005 or .015 moisture barrier backer, with standard satin clear anodized aluminum that include 2ea: C-4 side trim, standard CR-4 blade tray with radius edges. An optional 1" or 2" map-rail with various insert options: natural cork, forbo or vinyl covered natural cork insert at additional cost. All aluminum is 6063-T5 alloy that comes in satin standard clear anodized color. Call the office for a powder-coat option at additional cost.

1500 Series

Visual display boards

Markerboards/Chalkboards substrate construction consist of e3 porcelain on 1/2" particleboard with optional .005 or .015 moisture barrier backer, with standard satin clear anodized aluminum that includes 2ea: C-18 side trims, standard CR-4 blade tray with radius edges. An optional 1" or 2" map-rail with various insert options: natural cork, forbo or vinyl covered natural cork insert at an additional cost. All aluminum is 6063-T5 alloy that comes in satin standard clear anodized color. Callthe office for a powder-coat option at an additional cost.

2000 Series

Visual display boards

Markerboards/Chalkboards substrate construction consist of e3 porcelain on 1/2" particleboard with optional .005 or .015 moisture barrier backer, with standard satin clear anodized aluminum that includes: 2ea C-4 side trims, standard CRC-2B box tray with end-caps. An optional 1" or 2" map-rail with various insert options: natural cork, forbo or vinyl covered natural cork insert at an additional cost. All aluminum is 6063-T5 alloy that comes in satin standard clear anodized color. Call the office for a powder-coat option at an additional cost.

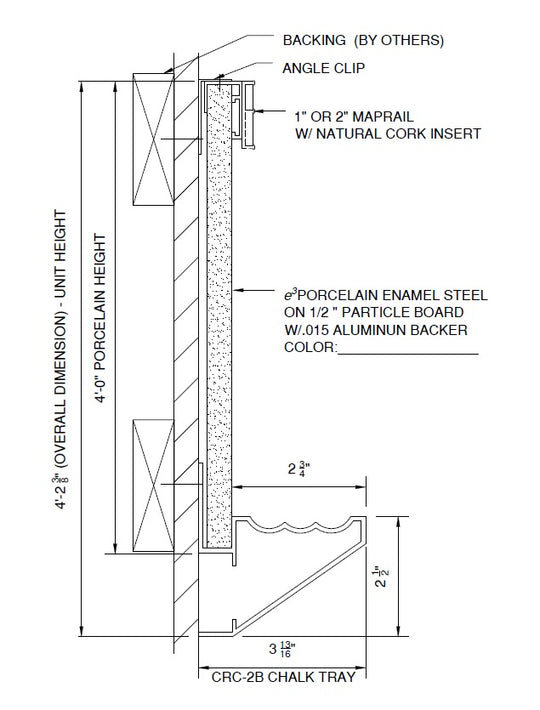

2500 Series

Visual display boards

Markerboards/Chalkboards substrate consist of e3 porcelain on 1/2" particleboard with optional .005 or .015 moisture barrier backer, with standard satin clear anodized aluminum that include: 2ea C-18 side trims, standard CRC-2B box tray with end caps. An optional 1" or 2" map-rail with various insert options: natural cork, forbo or vinyl covered natural cork insert at an additional cost. All aluminum is 6063-T5 alloy that comes in satin satndard clear anodized color. Call the office for a powder-coat option at an additional cost.

FHW Series

Full Height writing wall visual display

Full height writing walls display panels substrate consist of e3 porcelain on 1/2" particleboard with optional D2-N divider bar, SJ-1 concealed spline joint bar and or optional mag-tray at least 3 years experience recommended for this type of installation. All aluminum is 6063-T5 alloy that comes in a satin standard clear anodized color. Call the office for a powder-coat option at an additional cost.
